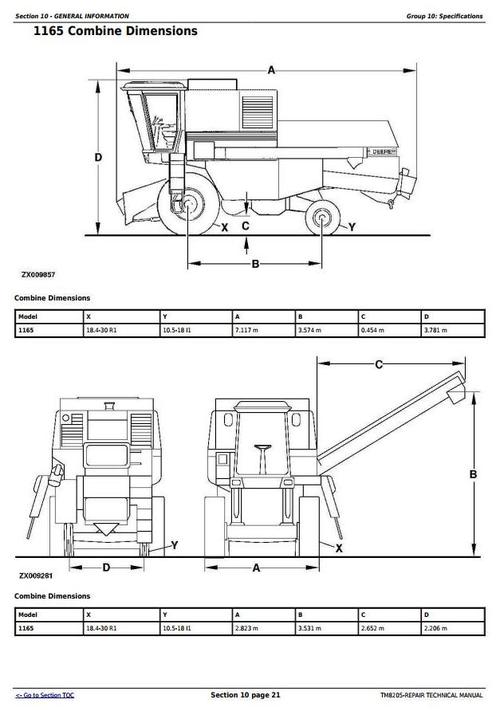

Illustrated Factory Service Repair Techncal Manual for John Deere Combines 1165, 1175 and 1175 Hydro

This manual contains high quality images, instructions to help you to troubleshoot, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

This is repair only manual, Diagnostic Manual with electrical wiring diagrams are sold separate.

Language: English
Format: PDF, 617 pages

Covered models:
  1165 (S.N. 053913 - )
  1175 (S.N. 053913 - )
  1175 Hydro (S.N. 054574 - )


Contents:
   Foreword
   References in this manual
   General Information
      Safety Information
      Specifications
      Reconditioning and Adjusting
   Engine
      Special Tools
      Removing and Installing Engine
   Fuel System, Air Intake and Cooling
      Fuel System
      Air Intake System
      Cooling System1165 and 1175 POSI-TORQPOSI-TORQ is a trademark of Deere & Company
   Electrical System
      Special Tools
      Batteries
      Identification of Type
      Fuses and Relays - A-Type
      Fuses and Relays - B-Type
      Voltage Regulator and Alternator
      Starter Motor and Starter Relay
      Identification of Type
      Combine Wiring Harnesses - A-Type
      Combine Wiring Harnesses - B-Type
   Transmission
      Engine Power Take-Off
      Final Drives
      POSI-TORQTransmission Unit
      Clutch Operation
      Clutch
      Transmission Housing and Differential1165 and 1175 POSI-TORQPOSI-TORQ is a trademark of Deere & Company
      Transmission Housing and Differential1175 Hydro
      Hydrostatic Pump
      Tensioning Cylinder of Hydrostatic Pump
      Removing Hydrostatic Drive Motor
      Tires and Wheels
      Steel Track
   Brakes, Steering and Rear Axle
      Operating Brakes
      Break Pedals and Master Cylinder
      Hydraulic Steering
      Rear Axle
   Hydraulic System
      Hydraulic Lines
      Hydraulic Oil Reservoir
      Triple Hydraulic Pump
      Hydraulic Valve BlockParker
      Hydraulic Valve BlockSauer Danfoss
      Hydraulic Cylinders
      Accumulator
   Miscellaneous
      Bearings and Shafts
      Drive Belts
      Drive Chains
      Front Axle
      Compressed Air System
   Operators Station, Cab and Air Conditioning
      Identification of Type
      Cab Electrical Components - A-Type
      Cab Electrical Components - B-Type
      Handle Refrigerants Safely
      Air ConditioningSystem Repair
      Identification of Type
      Air Conditioning System - A-Type
      Air Conditioning System - B-Type
      Operators Station Levers
   Feeder House - Flex Headers
      Removing Feeder House
      Repairing Parts
      Adjustments
   Feeder House - Rigid Headers
      Removing Feeder House
      Repairing Parts
      Adjustments
   Threshing System, Separation and Cleaning
      Threshing Unit Drive Mechanism
      Threshing Cylinder Speed Variator
      Mechanically Actuated Cylinder Variator
      Threshing Cylinder
      Concave
      Overshot Beater Cylinder
      Threshing Cylinder Speed Reduction Gear
      Straw Walker
      Sieves
      Fan and Fan Variator
   Grain Transport and Unloading
      Augers and Tailings Elevator
      Augers and Clean Grain Elevator
      Grain Tank Unloading Auger
      Unloading Auger Hydraulic Cylinder
   Straw Chopper and Straw Distributor
      Straw Chopper
      Straw Distributor

---
