24.00 USD

Original Illustrated Factory Workshop Service Manual for TCM Electric Lift Truck 1Q2 series.

Original factory manuals for TCM Lift Trucks contains high quality images, circuit diagrams and instructions to help you to operate, maintenance and repair your truck. All Manuals Printable, without restrictions, contains Searchable Text and bookmarks

Covered models:
    FHB20-E1 (SN from 1Q2E700001 to 1Q2E770000)
    FHB25-E1 (SN from 1Q2E700001 to 1Q2E770000)
    FHB25-E1L (SN from G1Q2E710001 to G1Q2E770000)
    FHB30-E1 (SN from G1Q2E710001 to G1Q2E770000)
    FHB30-E1W (SN from G1Q2E710001 to G1Q2E770000)

Language: English
Format: PDF, 549 Pages
Compatible WIN/Mac

Contents:
    GENERAL ONFORMATION
    MAINTENANCE
    CONTROL SYSTEM
    BATTERY CHARGER
    ELECTRIAL SYSTEM
    MOTOR MECHANISM
    DIFFERENTIAL CARRIER
    FRONT AXLE
    REAR AXLE
    BRAKE SYSTEM
    STEERING SYSTEM
    HYDRAULIC SYSTEM
    LOADING MECHANISM

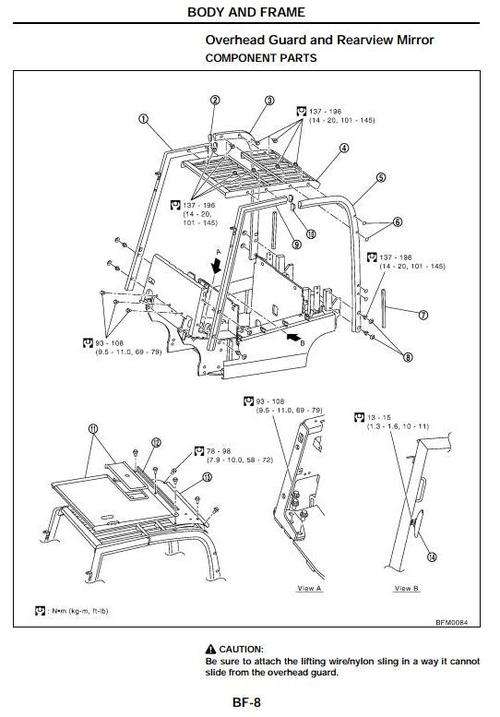

    BODY AND FRAME
    OPTIONS
    BULLETINS

---

Keywords: fhb20-e1;fhb25-e1;fhb30-e1;tcm
File Size: 23.7 MBytes
