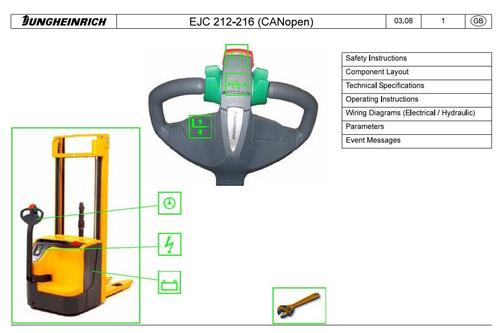

Original Illustrated Factory Workshop Service Manual for Jungheinrich Electric Stacker EJC-Series.

Original factory manuals for Jungheinrich Forklift Trucks, contains high quality images, circuit diagrams and instructions to help you to operate and repair your truck. All Manuals Printable and contains Searchable Text

Covered models:
     EJC 212 (05.2008-10.2011)
     EJC 214 (05.2008-10.2011)
     EJC 216 (05.2008-10.2011)
     EJC 220 (05.2008-10.2011)

Language: English
Format: ZIP, Contained set of PDF Manuals
    1. Operating Instructions, PDF, 104 Pages
    2. Service Manual, PDF, 467 pages
    Contents:
        Safety Instructions
        Component Layout
        Technical Specifications
        Operating Instructions
        Wiring Diagrams (Electrical / Hydraulic)
        Parameters
        Event Messages
        Drive Brake
           -Spring Loaded Brake
        Display
            -CANDIS
        Controls
            - ISM Access Module (see "ISM" service manual)
            -CANCODE
        Wiring
            -Connectors / Binders
        Charger assembly
            -Internal charger
        Electrics
            -Traction controller
        Electric motor
            -Sensor bearing
        Transmission
            -Drive transmission gear unit
        Wheels
            -Rigid castor wheel
            -Pro Trac castor wheel
        Mast, hydraulic
            - Line break safety device
        Mast, mechanical
            -Chain adjustment
            -Determining the mast rollers
            -Section play adjustment
        Hydraulic System
            -Hydraulic unit
        Commissioning
            -Commissioning (see operating instructions).
        Maintenance
            -Regular inspection in accordance with FEM 4.004
            -Maintenance checklist B
            -Maintenance checklist C
            -Maintenance checklist (cold store) B
            -Maintenance checklist (cold store) C
        Electrics
            -Power steering disassembly / assembly
            -Power steering adjustment
            -Actual value sensor
            -Steering controller
        Tiller arm
            -Tiller arm disassembly

---
